Driving type驅動方式

6×6

Vehicle kerb mass (kg)整車整備質量

17800

Max. gradeability(%) 最大爬坡度

30

Overall dimensions (mm) 外型尺寸

Length長×Width 寬×Height高

10900*2490*3750

Wheel base (mm)軸距

4575+1400

Engine發動機

WP12.400濰柴歐2排放

Horse power 馬力

400

Displacement(L)排量

11.596

Fuel tank capacity (L)油箱

400L Aluminium tank

Tyre輪胎

14.00R20

Gearbox變速箱

Transmission變速箱

10個前進擋，2個后退擋

Max. torque (N.m)最大扭矩

2000

Front axle前軸

MAN 9T front axle 9噸

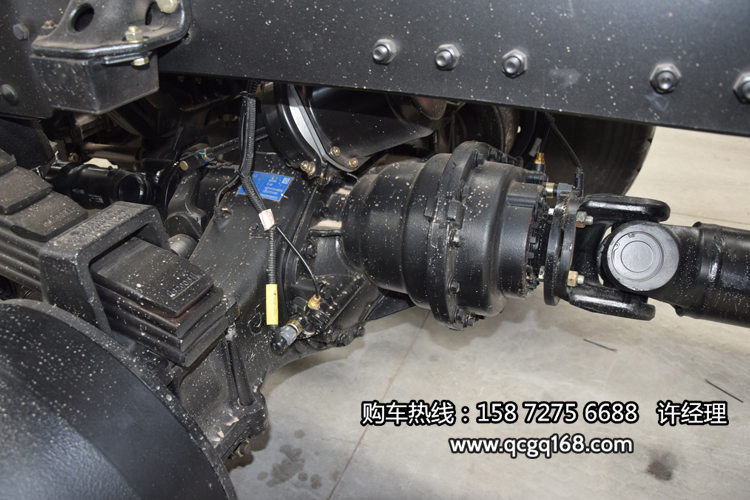

Drive axle 驅動橋

MAN 16T×2 double reduction driving axle

16噸

Steering轉向機

ZF technology

采艾孚技術

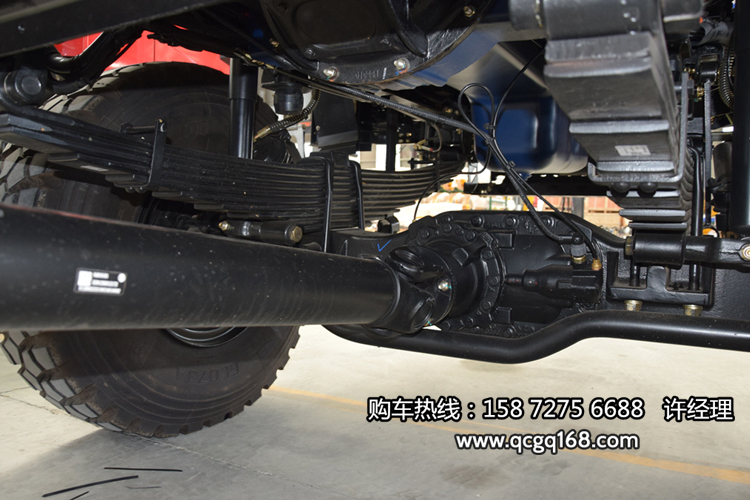

Suspension 懸架

Front and rear multiple leaf-springs, four main springs+ four U-type bolts

前后多片簧,四主片+四騎馬螺栓

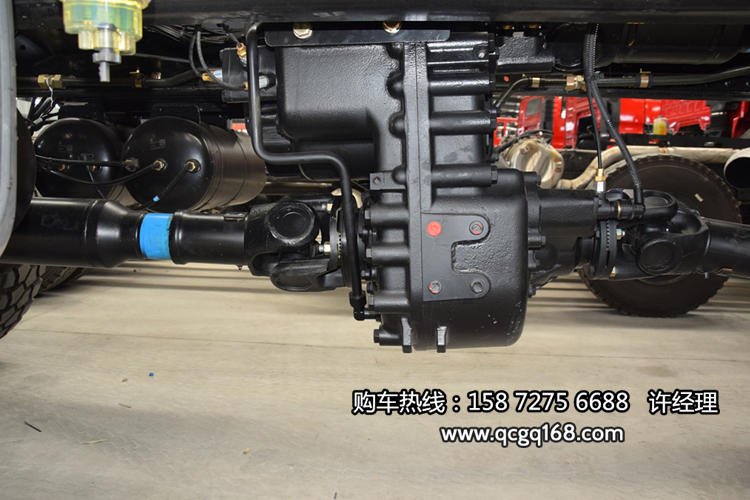

Transfer case分動箱

ZQC2000

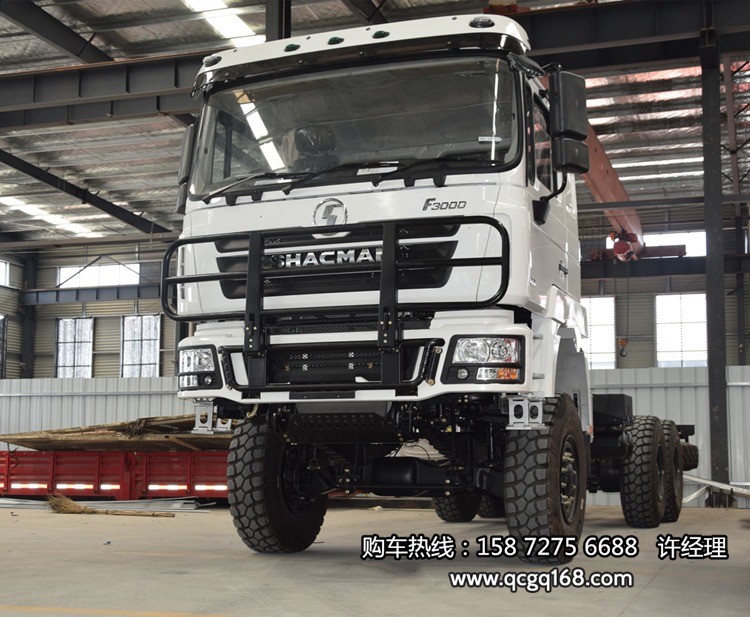

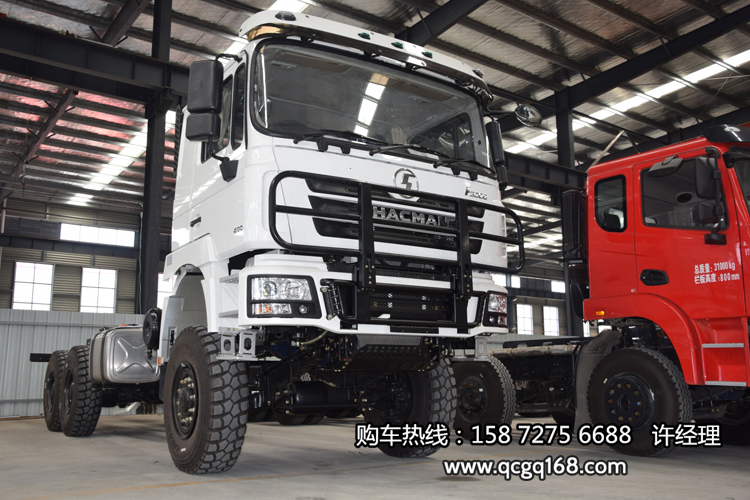

Cab駕駛室

D’LONG F3000 lengthened flat cab, annular window curtain, rear window, hydraulic suspension driver’s seat, 4-point hydraulic suspension cab, one sleeping bed, A/C, manual window machine, metal bumper

德龍F3000加長平頂駕駛室、環形窗簾、開后窗、液壓主座椅、四點液壓懸浮駕駛室、單臥鋪、電控自動恒溫空調、手動搖窗機、手動翻轉、金屬保險杠

Platform dimentions(mm) 大箱

1、長度6300MM*寬度2500MM 高度80厘米

吊機規格要求

徐工牌 8.0噸四節折臂吊、帶前支腿、后支腿（單腔支腿）

備注

駕駛室前面 加裝前圍防撞保險杠
